Pavo20 Pocket, lightweight at only 95g, is designed to meet the needs of DJI aerial photographers to enter FPV. This all-inclusive package comes with essential components and features a pocket-sized design for convenient portability. The Auxiliary Flight Function with N/S/M and Turtle Mode is perfect for the beginners' initial exploration. Equipped with the DJI O3, it shares the same frame structure and vibration solution as the Pavo20, ensuring flight stability and reliability. Say goodbye to jelly and hello to professional-grade, cinematic results. With 2S power, enjoy flight times of up to 4.5 minutes. Grab your pocket and be ready to capture every funny moment on the go. It's time to fully unleash beginners' cinewhoop creativity.

Note: The DJI O3 HD Digital VTX is not included in all packages, please buy it separately at the DJI store.

Bullet Point

• Pavo20 Pocket, lightweight only 95g, Its pocket-sized design ensures convenient portability. And this all-inclusive package comes equipped with essential components excluding the DJI O3 Air Unit, enabling you to capture every funny moment on the go.

• Auxiliary Flight Function that stable hover at a desired altitude and position minimizes drifting and wobbling, providing stable flight for an enjoyable and safe experience. And offers N/S/M 3 flight modes, no burden to fly away. By engaging in Turtle Mode, the drone can flip over automatically after the crash to resume flying.
• Meet the needs of DJI aerial photographers to enter FPV. Equipped with DJI O3 Air Unit and ELRS system to achieve high definition, low latency, and long-distance shooting, fully release beginner's cinewhoop creativity.

• The Pavo20 frame structure and vibration solution are used on the Pavo20 Pocket to ensure flight stability and reliability. Saying goodbye to jelly, and hello to professional-grade, cinematic results.
• With a customized 1103 | 11000KV Motor and durable GF 2023 3-blade Props, it offers an optimal Thrust-to-Weight Ratio for agile and precise maneuvers. The higher capacity BT3.0 550mAh 2S Battery provides flight times of up to 4.5 min, ensuring exceptional smooth aerial footage.
• These bullet points are essential for a cinewhoop to carry the camera, achieve maneuverability for creative shots, capture smooth and high-quality aerial footage, and ensure safety during flight. Elevate DJI aerial photographers' first-time cinewhoop flying experience to new heights with it.

Specification

	Pavo20	Pavo20 Pocket
Wheelbase	90mm	90mm
Motor	1103|8500KV Brushless Motor	1103|11000KV Brushless Motor customized version
Flight Controller	F405 20A Betaflight FC	Independent R&D FC
Stable Hover	/	Support
Fixed Point Sensor	/	Optical Flowmeter&Laser&Barometer Horizontal accuracy ±0.2m, vertical positioning accuracy ±0.3m
Support VTX*	DJI O3 Air Unit Caddx Vista Kit RunCam Link	DJI O3 Air Unit
Battery Slot Size	20mm*Unlimited Height	16.2*14mm
Battery Connector	XT30	BT3.0
Recommend Battery	Only 3S 450mAh~650mAh	BT3.0 550mAh 2S Battery
Propellers	GF 2015 2-Blade Props	GF 2023 3-blade Props
Flight Time (8.7V~6.8V)	5min(3S 450mAh)	4.5min
Empty Weight (No Battery)	94g	95g
Flight Mode*	Angle/Horizon/Acro Mode	N/S/T (M Mode is not available yet)
Flight Range (No occlusion)	800m	500m

Note: 1. The DJI O3 HD Digital VTX is not included in all packages, please buy it separately at the DJI store.  2. The M Mode of the first batch Pavo20 Pocket is temporally not activated for use. 3. Please correctly connect the battery's positive and negative terminals to prevent drone damage.

Auxiliary Flight Function

Auxiliary Flight Function, the beginner-friendly FPV function for DJI pilots. Pavo20 Pocket features a highly precise built-in barometer that detects height, ensuring the drone stays at the desired altitude and position. Stable hover minimizes drifting and wobbling, providing stable flight for an enjoyable and safe experience. Effortlessly maintain an optimal position in the sky, allowing you to focus on capturing the perfect shot. Whether filming landscapes or action-packed sequences, Pavo20 Pocket guarantees smooth and visually captivating frames. Enjoy unparalleled control and stability throughout your entire filming session.

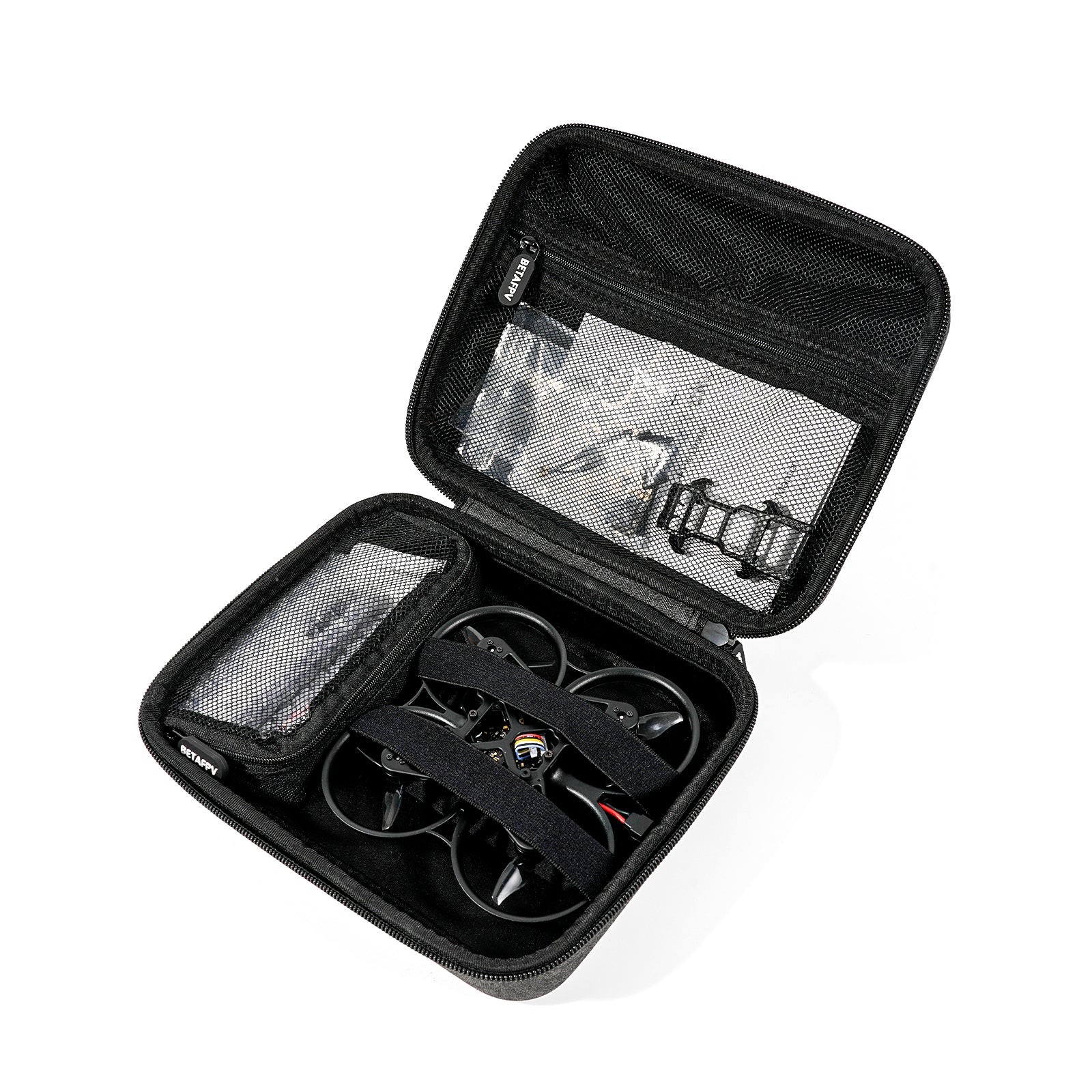

All In One Portable Storage Bag

The Pavo20 Pocket is tailor-made for cinewhoop beginners. Its pocket-sized design ensures convenient portability. And this all-inclusive package comes equipped with essential components excluding the DJI O3 Air Unit, saving time and effort on additional purchases and assembly. This kit features a 15W Type-C charger supporting PD 3.0 fast-charging protocol, fully charging 1 battery in around 25 mins. It includes two 550mAh batteries for a total flight time of around 9 mins, allowing you to seize every opportunity to savor the joy of flight and capture funny moments wherever you go. With the Pavo20 Pocket, the cinewhoop flight knows no limit.

HD Digital VTX System

Meet the needs of DJI aerial photographers to enter FPV. Equipped with DJI O3 Air Unit digital image transmission and ELRS system to achieve high definition, low latency, and long-distance shooting. It supports a max video transmission quality of 1080p/100fps, giving you richer image details. Pavo20 Pocket empowers you to enjoy distant scenery and fully release beginner's cinewhoop aerial creativity with stunning visual effects.

Note: The installation guide video for DJI O3 Air Unit on Pavo Series Quadcopter

Precise Security Structure For HD VTX

The camera side panel and 4-point fixation hole design effectively ensure lens protection and easy ND filter installation, eliminating any concerns about angle deviation after intense flights. Like the Pavo20, the DJI O3 unit is mounted on a carbon fiber plate with rubber dampers, which filters out low-frequency vibrations, saying goodbye to jelly, and hello to professional-grade, cinematic results. Modular Protection Design is closed to reduce the involvement of foreign matter. The unique triangle arm-reinforced structure enhances durability and reliability. Insert copper nut design, employing an integrated injection molding technique, eliminating the hassle of adjusting screw tightness and streamlining the installation.

Note: The vibration problems and solutions encountered by Pavo20 Pocket are consistent with Pavo Pico. Please refer to Pavo Pico DJI O3 Vibration Problem.

Powerful Propulsion System

A powerful propulsion system is essential for a cinewhoop to carry the camera, achieve maneuverability for creative shots, capture smooth and high-quality aerial footage, and ensure safety during flight. With a customized 1103 | 11000KV Motor and durable GF 2023 3-blade Props, it offers an optimal Thrust-to-Weight Ratio for agile and precise maneuvers. 2S power which is an advanced choice for cinewhoop beginners, the higher capacity BT3.0 550mAh 2S Battery provides flight times of up to 4.5 min, ensuring exceptional smooth aerial footage. Elevate beginners' first-time flying experience to new heights with this powerful propulsion system.

Various Modes, Accessible to All

The Pavo20 Pocket offers N/S/M 3 flight modes, no burden to fly away. By engaging in Turtle Mode, the drone can flip over automatically after the crash to resume flying. Whether you're a seasoned FPV pilot or a beginner, the Pavo20 Pocket enables confident flying from the start. It offers a range of flight modes to suit different skill levels:

• Normal Mode: provides moderate flight speed and intelligent Auxiliary Flight Function. Ideal for beginners to achieve smooth movements and video capture.
• Sport Mode: enhances agility and speed, improving drone responsiveness to control stick movements, a preliminary attempt to capture a powerful sense of motion shots.
• Manual Mode: offers the highest maneuverability, ideal for experienced FPV pilots engaged in racing and freestyle flying, requiring proficient control skills to avoid collisions.

Note: 1. Recommend beginners to use N Mode first for your first steps. 2. The M Mode of the first batch Pavo20 Pocket is temporally not activated for use.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera including UV, CPL, ND8, ND16, ND32, is tailored for the Pavo20 pocket, Pavo25 V2, Pavo20, and Pavo Pico Brushless Whoop Quadcopter. These lightweight filters are made of crafted from high-quality aluminum and optical glass. Equipping the appropriate filter can help you capture real colors with stunning highlight and shadow details no matter indoor and outdoor scenarios. Vertically press to mount without detaching the glass lens cover or affecting waterproof performance. Ensuring optimal image clarity while lens-safe. Experience more creative freedom for your shots with BETAFPV ND Filters.

Recommend Parts

• Battery: BT3.0 550mAh 2S Battery (2PCS)
• Props: Gemfan 2023 3-blade Propellers(1.5mm Shaft 4PCS)
• ND Filters: BETAFPV ND Filter for DJI O3 Camera

FAQ

• Download the User Manual for the Pavo20 Pocket
• Download the Firmware and CLI dump file for the Pavo20 Pocket
• The installation guide video for DJI O3 Air Unit on Pavo Series Quadcopter
• Pavo20 Pocket currently does NOT SUPPORT control with DJI's original remote controller.
• Pavo20 Pocket requires the installation of the DJI O3 HD Digital VTX to fly properly or it CANNOT fly correctly.
• BEFORE USE, please read the manual to comply with safety regulations, including local drone laws

To INSTALLING and ADJUSTING the quadcopter correctly, please be aware of the following instructions:

• Camera angle adjustment: secure the camera housing and adjust the camera angle by loosening or tightening the screws on both sides
• Install BT3.0 550mAh 2S Battery with BETAFPV logo OUTWARD for proper quadcopter power connection

Package

• 1 * Pavo20 Pocket
• 2 * BT3.0 550mAh 2S Battery
• 1 * 2S Battery Charger and Voltage Tester | BT3.0
• 4 * Gemfan 2023 3-blade Propellers(1.5mm Shaft)
• 1 * Special Screw Package
• 1 * 4Pin Adapter Cable
• 1 * USB Type-C Adapter Board
• 1 * DJI O3 HD Digital VTX Mounting Bracket
• 1 * Pavo20 Pocket Manual
• 1 * Portable Storage Bag


Note: The DJI O3 HD Digital VTX is not included in all packages, please buy it separately at the DJI store.
